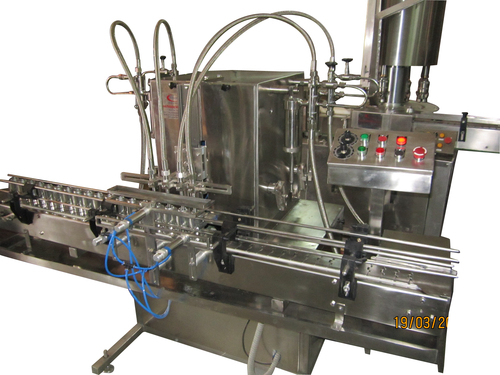

Automatic Free Flow Liquid Filling Machines

Automatic Free Flow Liquid Filling Machines
Automatic Free Flow Liquid Filling Machines
Product Code : 13
Brand Name : PRISMTECH
Product Description

To meet the diverse preferences of our precious patrons, we are occupied in offering a wide range of Automatic Free Flow Liquid Filling Machines. At our highly advanced production unit, the provided machines are manufactured by our deft technocrats using quality-tested components and advanced techniques. These machines are suitable for accurate filling of liquid in gallons and containers. Apart from this, we offer these Automatic Free Flow Liquid Filling Machines to our customers in several technical specifications.

Key Features:

  • Adjustable height
  • Vibration less operation
  • Power efficient
  • Simple operation

Automatic Four Head Volumetric Free Flow Liquid Filling Machines

Specification of the Equipment

Machines Basics:

Machine Name

Automatic 4 Head Volumetric Liquid Filling Machine

Production Speed Per Hour

2400 to 4800 Products per Hour (Speed Depends upon the Number of Filling Heads, Filling Volume & Operators Skill)

Number of Filling Heads

4 Head

Working Direction

Left to Right

Filling System

Volumetric Syringe Based (Suction from Bottom Tank)

Suitable for Products

Free Flowing Liquids

Suitable for Packing Material

HDPE / PET / GLASS / METAL TIN / Aluminium Bottles

Application

Filling Liquids in to the Bottles /Containers

Volume Capacity

(Range of Syringe)

5 ml to 30 ml

25 ml to 110 ml

50 ml to 250 ml

200 ml to 1000 ml

1000 ml to 2500 ml

(Any one of the above will be given with machine. For other range need to go for Extra Set of Change Parts at Extra Cost)

Volume Adjustment

With the Help of Volume Adjustment Block

Suck Back System

NRV Based / Drip Free Nozzles

Filling Volume Accuracy

+/- 1 %

Rejection Ratio During Production

1%

Working Height

850 +/- 100 mm

Machine Weight

Approx 400 Kgs

Machine Dimension

Approx - 6 (L) x 3 (W) x 5 (H)  in Feet

Change Parts (Optional)

Depends up on the Volume Range to fill.

No Bottle  No Filling

With the help of Sensor

Bottle Stopper

Pneumatic Based

Machines Material of Construction

Machine Main Base Frame

M.S Angles

Machine Coverings

Complete in S.S. 304

Product Contact Parts

S.S. 304

Non Contact Parts

S.S / M.S / Aluminium (Whichever is applicable)

Conveyor

S.S. 304 Slat

Conveyor Guide

S.S. 304 with Plastic Knob

Bearings

SKF / NTN

Plating(Wherever Applicable)

ENP / Zinc / Hard Chrome / Blackening

Diving System

IGUS Bearing Based Diving System

In let & Out Let Pipes

PVC Pipes

By-Pass Pipes

Silicon Pipes

Material Collection Tray at the bottom of Conveyor

S.S. 304

Bottle Centering Cups (If Required)

Nylon

Machines Electronics and Pneumatics Components

Motor Make

Hindustan / Remi / Bonfigloli / Bonvario

Gear Box Make

Shacon / Remi

VFD Make (If Require)

Delta

Electrical Wiring

Ferule Numbering on all the wires with Proper Markings

Electrical Components

ABB / L and T / Siemens Make

Sensors

Photo Electric Sensor

Operating Panel

Push Button Type

Pneumatics

Janatics

Air Pipes

Janatics

Wires and Cables

Polyca

Machines Power and Air Consumption Requirement

Power Consumption

1 H.P / 230 V.AC

Phase

Three Phase

Compressed Air Requirement

2 H.

 Machines Servicing and Maintenance

Maintenance of Machine

Weekly Oiling and Greasing is Required for smooth functioning of Machine

Machine Cleaning

Advisable to clean machine regularly Weekly (In case of Sticky and Colour Base Products, clean machine daily) for smooth functioning of Machine

Optional Accessories (If Required by Customer at Extra Cost)

  • Pneumatic Based  Dripping Tray
  • Pneumatic Neck Holding System
  • Production Counter
  • S.S By-Pass
  • S.S. Flexible Pipes in Case of Hazardous Product
  • Flame Proof Motor & Control Panel
  • In-Feed Turn Table for Continues Bottle Feeding.
  • Pre and  Post Nitrogen Flushing System
  • Polycarbonate Enclosure in Aluminium Profile
  • Stirrer System

Machines Utility Requirement (Customer need to Arrange)

  • Filling Tank / Storage Tank
  • Voltage Stabilizer to control power fluctuation
  • Main Electrical Power Input till Machine
  • Well Trained Operator for Operating the Machine
  • Unskilled Helper to help the Operator.
