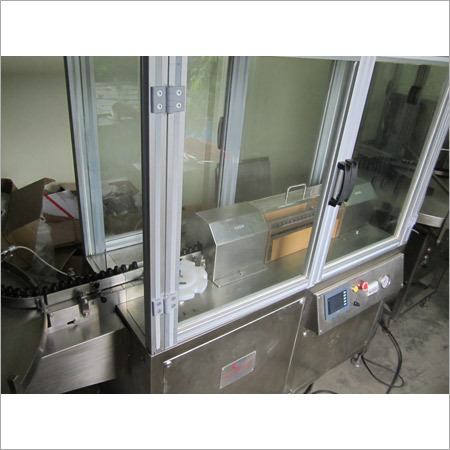

Automatic Inverted Air Jet Cleaning Machines

Automatic Inverted Air Jet Cleaning Machines
Automatic Inverted Air Jet Cleaning Machines
Product Code : 04
Brand Name : PRISMTECH
Product Description

Since 2002, our versatile enterprise has been indulged in providing a wide assortment of Automatic Inverted Air Jet Cleaning Machines. Our diligent technocrats use cutting-edge methodology and quality approved components to manufacture these machines in accordance with predefined industry norms. These machines are fitted with pneumatic cylinder for auto opening and closing that helps in cleaning the machinery. Apart from this, our reputed clients can easily get these Automatic Inverted Air Jet Cleaning Machines in diverse technical specifications.

Key Features:

  • Frame made from SS-structure
  • Resistant to corrosion
  • Low maintenance
  • Top filling for other liquid

Automatic Inverted Air Jet Cleaning Machines

Specification of the Equipment

Machines Basics:

Machine Name

Automatic Inverted Air Jet Cleaning Machines

Production Speed Per Hour

2400 to 4800 Bottles per Hour (Speed Depends up on the Size of the Products).

Number of Air Jet Nozzles

4 / 6 / 8 Nos. Nozzles (Depends up on the Speed)

Suitable for Products

PET / Glass / HDPE Bottles ranging from 10 ml to 1000 ml

Application

Useful to Clean Powder Particles in Bottles

Bottles Cleaning Accuracy

95% Cleaning Accuracy

Rejection Ratio During Production

1%

Working Height

850 mm +/- 50 mm

Conveyor Length

8 Feet

Inverter Length

From 350 mm to 450 mm depending up on the bottles

Machine Weight

Approx 350 Kgs

Machine Dimension

Approx 8 (L) x 4 (W) x 5 (H) – in Feet

Change Parts

Required in case of change in Bottle Diameter and Mouth of the Bottle

In Built Turn Table (Optional)

36 Inch Diameter

Bottler Feeder

Star Wheel Based

Machines Material of Construction:

Machine Main Base Frame

M.S Powder Coated Cladded with S.S. 304

Machine Coverings

Complete in S.S. 304

Product Contact Parts

S.S. 304

Non Contact Parts

S.S / M.S / Aluminium / (Whichever is applicable)

Conveyor Slat

S.S. 304 Slat with Nylon Strips on Side

Conveyor Shafts

M.S with Hard Chrome or Zinc Plating

Conveyor Sprockets

M.S or Nylon

Bearings

SKF / NTN

Plating(Wherever Applicable)

ENP / Zinc / Hard Chrome / Blackening

Inverting System

Nylon covered with S.S. 304

In-Feed Star Wheel

Nylon

Guide Brackets

Moldex Make

Guide Rod & Pin

S.S. 304

Dust Collector

Drum with filter given inside the machine.

Machines Electronics and Pneumatics Components

Conveyor Motor Make

Hindustan / Remi / Bonfiglioli / Bonvario

Conveyor Gear Box Make

Hindustan / Remi / Bonfiglioli / Bonvario

Conveyor VFD Make

Delta

Pneumatics

FESTO / Janatics

Pneumatics Pipes

FESTO / Janatics

Vacuum Blower / Pump

1 H.P Indovac Make

Sensors

Photo Electric Sensors SICK Make

Electrical Wiring

Ferule Numbering on all the wires with Proper Markings

Electrical Components

ABB / L&T / Siemens Make

Machines Power and Air Consumption Requirement

Power Consumption

1 H.P / 230 V.AC

Phase

Single Phase

Compressed Air Required

2. H.P

Machines Servicing and Maintenance

Maintenance of Machine

Weekly Oiling and Greasing is Required for smooth functioning of Machine

Machine Cleaning

Advisable to clean machine regularly for smooth functioning of Machine

Optional Accessories (If Required by Customer at Extra Cost)

  • Polycarbonate Enclosure in Aluminium Profile.
  • Production Counter
  • Touch Screen PLC Delta Make.
  • Flame Proof Control Panel and Motor for Flammable Product

Machines Utility Requirement (Customer need to Arrange)

  • Air Compressor for Compressed Air
  • Voltage Stabilizer to control power fluctuation
  • Main Electrical Power Input till Machine
  • Well Trained Operator for Operating the Machine
  • Unskilled Helper to help the Operator.
