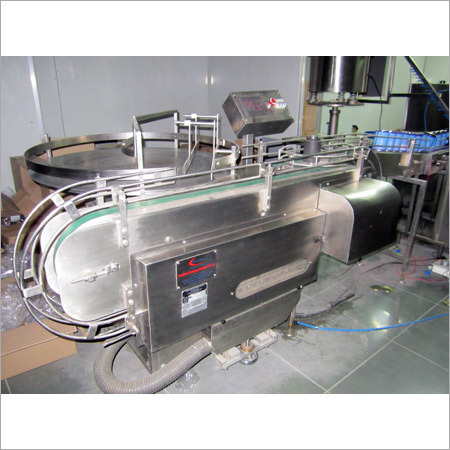

Automatic Metal TINS Cleaning Machine

Automatic Metal TINS Cleaning Machine
Automatic Metal TINS Cleaning Machine
Product Code : 03
Brand Name : PRISMTECH
Product Description

Automatic Metal TINS Cleaning Machine

For last 13 years, we are instrumental in manufacturing, exporting and supplying a wide array of Automatic Metal TINS Cleaning Machine. The offered machine is efficiently manufactured by our highly skilled technocrats using optimal quality components at our well-developed production set up. This machine is highly demanded in various industries for automatic cleaning of metallic objects. Also, this Automatic Metal TINS Cleaning Machine can be availed from us at feasible prices.

Key Features:

  • High speed cleaning
  • Low maintenance
  • Sturdiness
  • Rugged design

Automatic Inverted Metal TINS Cleaning Machine

Specification of the Equipment
Machines Basics:

Machine Name

Automatic Inverted Metal TINS Cleaning Machine

Production Speed Per Hour

2000 to 2400 Bottles per Hour (Speed Depends up on the manual feeding of bottles on the conveyor by operator).

Turn Table (Optional)

36 or 48 Inch In-Built S.S. Turn Table

Suitable for Products

METAL TINS

Application

To clean Powder Particles in the Bottles

Bottles Cleaning Accuracy

95% Cleaning Accuracy

Rejection Ratio During Production

1%

Working Height

850 mm +/- 50 mm

Conveyor Length

6 Feet

Machine Weight

Approx 350 Kgs

Machine Dimension

Approx 6 (L) x 4 (W) x 5 (H) – in Feet

Change Parts

Required in case of change in Bottle Base Diameter

 Machines Material of Construction

Machine Main Base Frame

M.S. Powder Coated or Colored

Machine Coverings

Complete in S.S. 304

Product Contact Parts

S.S. 304

Non Contact Parts

S.S / M.S / Aluminium (Whichever is applicable)

Conveyor Slat

S.S. 304 Slat with Nylon Strips on Side

Conveyor Shafts

M.S with Hard Chrome or Zinc Plating

Conveyor Sprockets

M.S or Nylon

Bearings

SKF / NTN

Plating(Wherever Applicable)

ENP / Zinc / Hard Chrome / Blackening

Guide Brackets

S.S. 304

Guide Rod & Pin

S.S. 304

Dust Collector

Drum with filter given inside the machine.

Conveyor

Magnetic Conveyor with Belt

Machines Electronics and  Pneumatics  Components

Conveyor Motor Make

0.5 H.P Hindustan / Remi / Bonfigloli / Bonvario

Conveyor Gear Box Make

Hindustan / Remi / Bonfigloli / Bonvario

Conveyor VFD Make

0.5 H.P Delta

Vacuum Blower

1 H.P Indovac Make

Sensors

Photo Electric Sensors SICK Make

Electrical Wiring

Ferule Numbering on all the wires with Proper Markings

Electrical Components

ABB / L&T / Siemens Make

Machines Power and  Air Consumption Requirement

Power Consumption

1 H.P / 230 V.AC

Phase

Single Phase

Compressed Air Required

2. H.P

Machines Servicing and  Maintenance

Maintenance of Machine

Weekly Oiling & Greasing is Required for smooth functioning of Machine

Machine Cleaning

Advisable to clean machine regularly for smooth functioning of Machine

Optional Accessories (If Required by Customer at Extra Cost

  • Polycarbonate Enclosure in Aluminium Profile.
  • Production Counter
  • Touch Screen PLC Delta Make.
  • Flame Proof Control Panel & Motor for Flammable Product

Machines Utility Requirement (Customer need to Arrange)

  • Air Compressor for Compressed Air
  • Voltage Stabilizer to control power fluctuation
  • Main Electrical Power Input till Machine
  • Well Trained Operator for Operating the Machine
  • Unskilled Helper to help the Operator.
