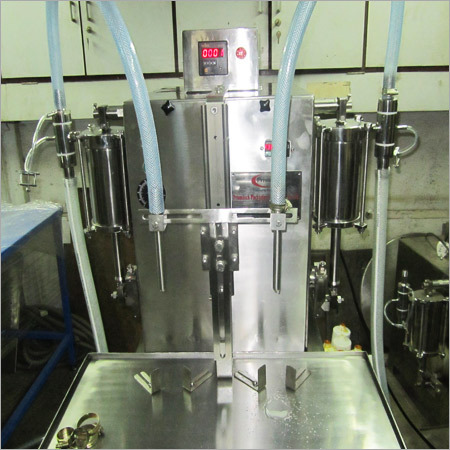

Semi Automatic Free Liquid Filling Machines

Semi Automatic Free Liquid Filling Machines
Semi Automatic Free Liquid Filling Machines
Product Code : 22
Product Description

Being a well-established firm since 2002, we are indulged in manufacturing, exporting and supplying a wide spectrum of Semi Automatic Free Liquid Filling Machines. The offered machines are manufactured with optimum efficiency using the best quality components and highly advanced methodology by our experienced technical experts. These machines are widely used for filling liquids in containers, bottles and tubes. Apart from this, the offered Semi Automatic Free Liquid Filling Machines can be availed from us at pocket friendly prices.

Features:

  • Controls liquid feeding
  • Ensures liquid level
  • Robustly constructed
  • Negligible maintenance

Semi Automatic Two Head Free Flow Volumetric Liquid Filling Machines

Specification of the Equipment
Machines Basics:

Production Speed Per Hour

1200 to 3600 Products per Hour (Speed Depends upon the Number of Filling Heads & Operators Skill)

Number of Filling Head Available

2 Head / 4 Head / 6 Head.

Filling System

Volumetric Syringe Based (Suction from Bottom Tank)

Suitable for Products

Free Flowing Liquids

Application

Filling Liquids in to the Bottles / Pouches / Containers

Volume Capacity (Range of Syringe)

5 ml to 30 ml

25 ml to 110 ml

50 ml to 250 ml

200 ml to 1000 ml

1000 ml to 2500 ml

(Any one of the above will be given with machine. For other range need to go for Extra Set of Change Parts at Extra Cost)

Filling Volume Accuracy

+/- 1 %

Rejection Ratio During Production

1%

Working Height

Table Top Model

Machine Weight

Approx 80 Kgs

Machine Dimension

Approx - 2 (L) x 2 (W) x 2 (H) – in Feet

Change Parts (Optional)

Depends up on the Volume Range to fill.

Machine’s Material of Construction

Machine Main Base Frame

M.S or S.S. 304

Machine Coverings

Complete in S.S. 304

Product Contact Parts

S.S. 304

Non Contact Parts

S.S / M.S / Aluminium  (Whichever is applicable)

Bearings

SKF / NTN

Plating(Wherever Applicable)

ENP / Zinc / Hard Chrome / Blackening

Diving System (If Require)

IGUS

In let & Out Let Pipes

PVC Pipes

By-Pass Pipes

Silicon

Machine’s Electronics and Pneumatics Components

Motor Make

0.5 H.P Hindustan / Remi / Bonfigloli / Bonvario

Gear Box Make

Shacon

VFD Make (If Require)

0.5 H.P Delta

Electrical Wiring

Ferule Numbering on all the wires with Proper Markings

Electrical Components

ABB / L&T / Siemens Make

Foot Switch

Any Indian Local Brand

Production Counter (If Require)

SELECT

Machines Power and Air Consumption Requirement

Power Consumption

0.5 H.P / 230 V.AC

Phase

Single Phase

Machines Servicing and Maintenance

Maintenance of Machine

Weekly Oiling & Greasing is Required for smooth functioning of Machine

Machine Cleaning

Advisable to clean machine regularly for smooth functioning of Machine

Optional Accessories (If Required by Customer at Extra Cost)

  • Diving System
  • Variable Frequency Drive
  • Buzzer System
  • Production Counter
  • Base Table with Frame for Mounting the Machine.
  • S.S By-Pass
  • S.S. Flexible Pipes in Case of Hazardous Product
  • Flame Proof Motor and  Control Panel

Machines Utility Requirement (Customer need to Arrange)

  • Voltage Stabilizer to control power fluctuation
  • Main Electrical Power Input till Machine
  • Well Trained Operator for Operating the Machine
  • Un-Skilled Helper to help the Operator.
